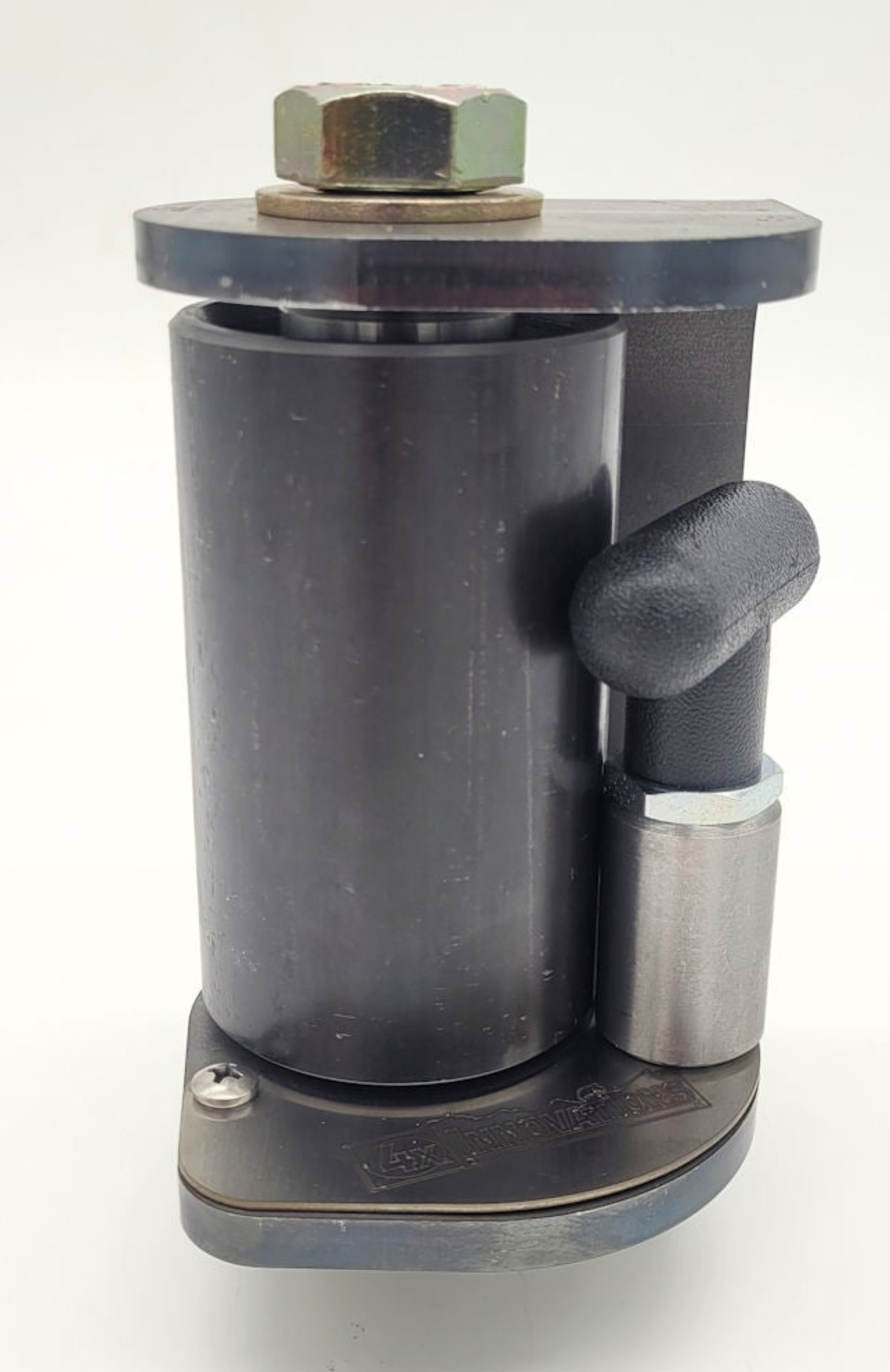

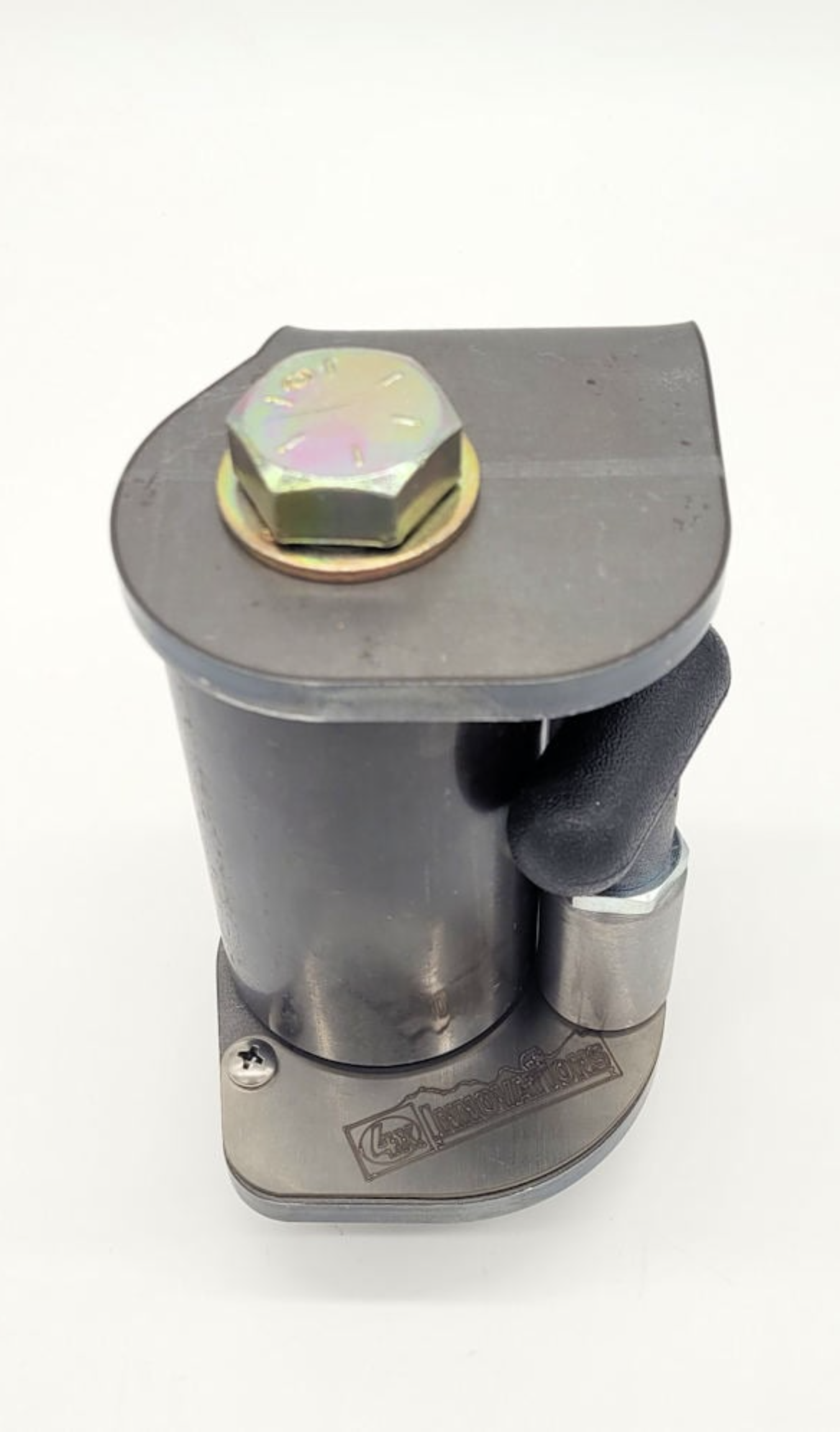

4X Innovations Swingout Pivot

Description

• Double Shear Mount for maximum strength
• 3/4in Grade 8 high strength pivot bolt
• Weldable lower nut, easy one tool dis-assembly
• 1000 pound rated wheel bearings, bearings ship not greased, must be greased for final assembly.
• Heavy Duty 2.375 “OD x 4” tall DOM outer sleeve
• Stainless Steel inner sleeves for corrosion protection
• Sealed top and bottom for bearing protection
• Spring loaded pin with hex head retaining ring – no more scratches from using pliers to tighten spring retainer!
• Hold open locking positions at 90 and 113 degrees open
• Stainless Steel skid pad under spring pad to protect from paint wear and corrosion, stainless steel hardware included
• Approximate dimensions of mounting bracket are 4-7/8″ tall, 3-3/8″ wide and 4″ deep, not including bottom nut or bolt head on top.
• Ships bare steel, ready to paint with the coating and color of your choice.
